ohmyclawd

A physical Claude Code usage monitor. It sits on a small ESP32 touchscreen and shows — in animated pixel art — how much of my Claude session and weekly limit I've burned, plus a digital clock.

A fork, credited. This builds on opariffazman/ohmyclawd, the original (Linux-focused) project — the firmware and pixel art are theirs. My fork, ohmyclawd-mac, makes it run on macOS and in the cloud; that part is mine.

What it does

• Real-time usage bars — session and weekly utilisation at a glance.
• 13 animated pixel sprites — the character changes with Claude Code's state, including a "waiting for your input" pose detected from the tmux session.
• OTA firmware updates — it checks GitHub releases on boot and updates with a tap, so I don't have to re-flash over USB.
• Captive-portal setup — WiFi and daemon config happen in the browser, no code changes.
• Pixel clock mode — a retro digital clock with a second-progress bar.

What I added in the fork

The original assumed Linux — systemd, credentials in a JSON file, sudo. Getting it onto my Mac, then off my Mac entirely, meant reworking the whole daemon and setup side:

• macOS-native install — a launchd service instead of systemd, installed to ~/.local/bin so there's no sudo.
• Keychain auth — macOS keeps Claude's credentials in the Keychain, not a JSON file, so I moved the daemon to a long-lived OAuth token (claude setup-token).
• Cloud deploy (Fly.io) — a multi-stage Dockerfile (a ~6 MB static Go binary) plus fly.toml, so the daemon runs at a stable fly.dev URL and the ESP32 no longer depends on my Mac's local IP.
• OTA from the fork, modernised CI (current GitHub Actions, master → main), and a rewritten macOS A-Z setup guide in the README.

Hardware

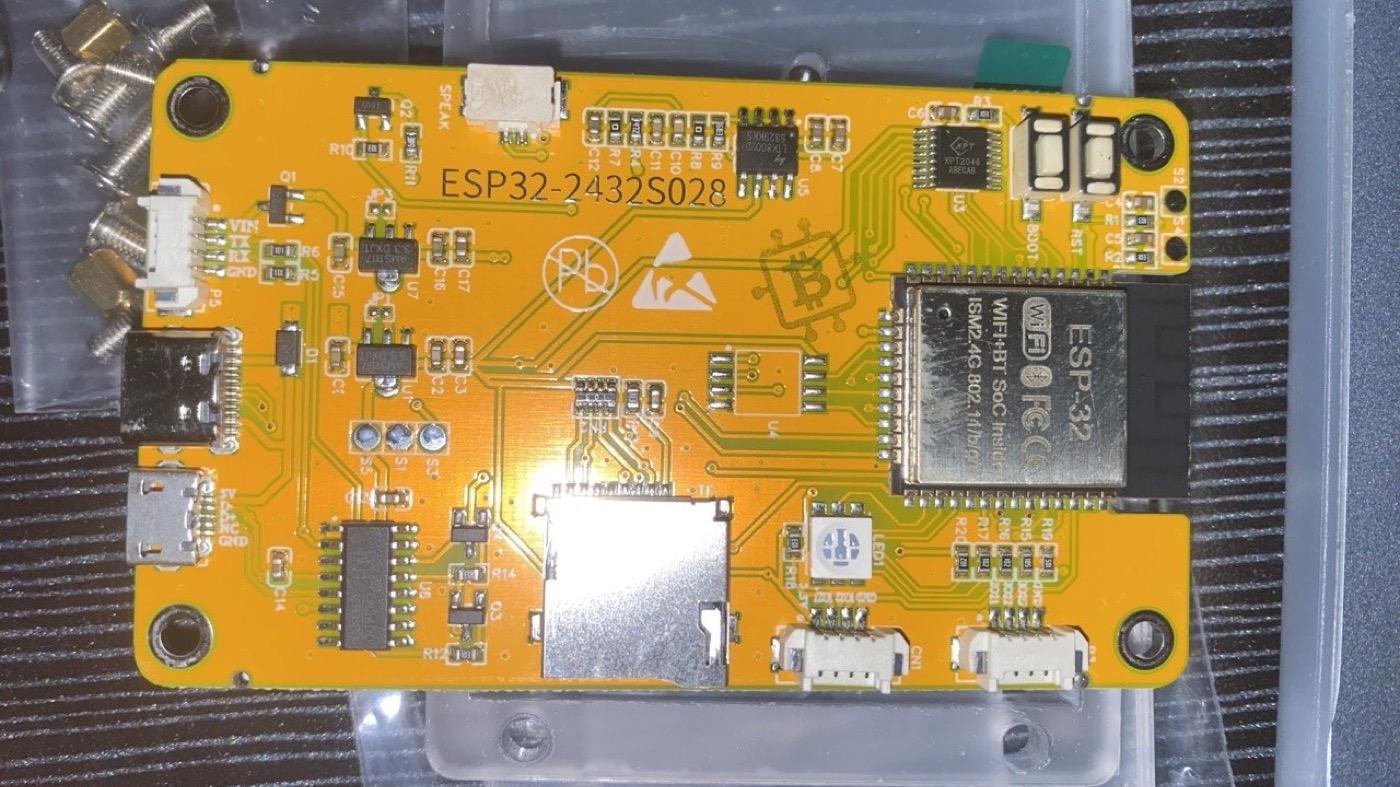

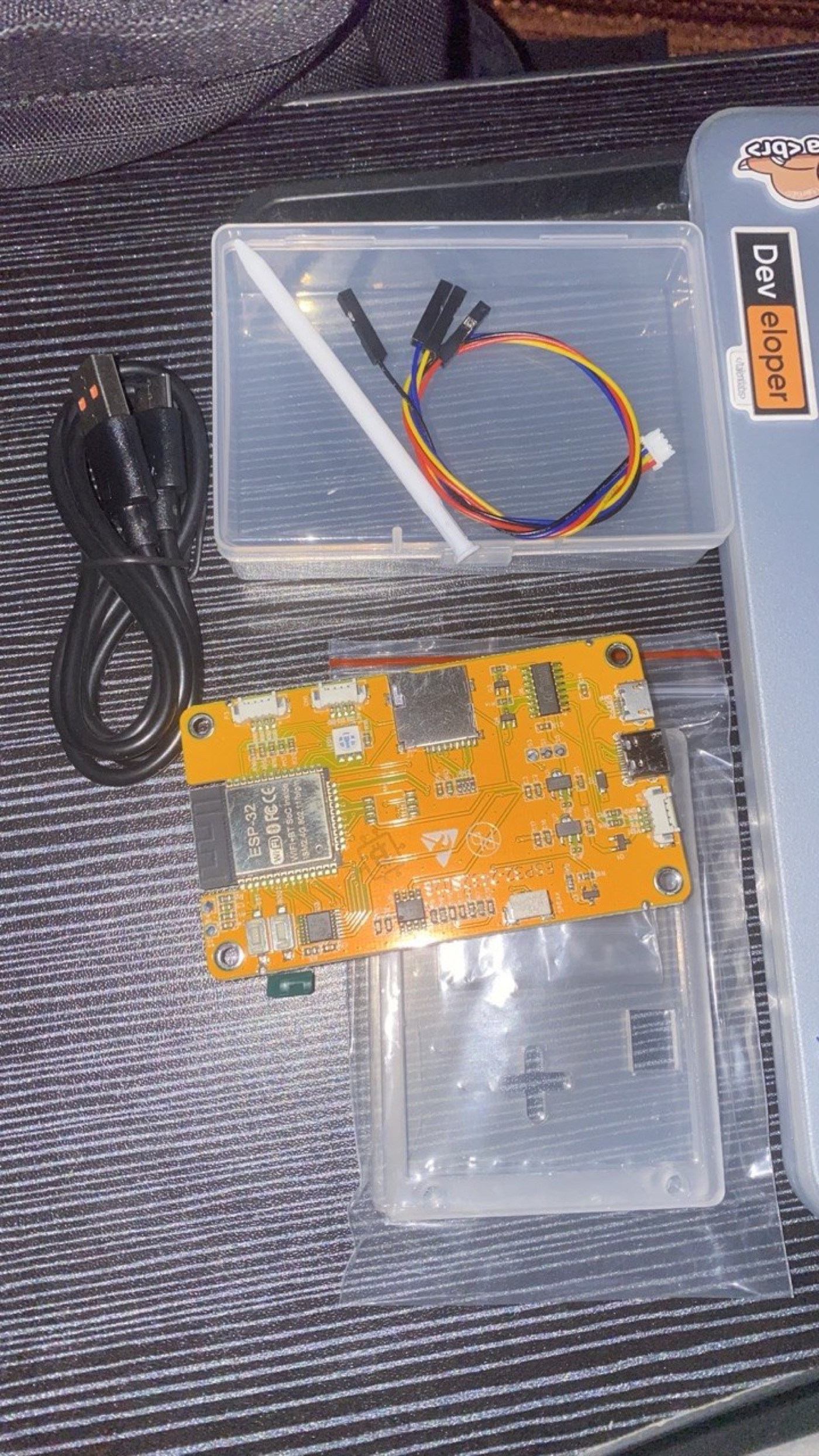

• Board: ESP32-2432S028R — the "Cheap Yellow Display" (CYD): a 2.8" ILI9341 320×240 TFT with an XPT2046 resistive touchscreen and 2.4 GHz WiFi.
• Firmware: C, flashed with PlatformIO.
• Daemon: a small Go service — on my Mac via launchd, or on Fly.io — that reads Claude Code's usage from its rate-limit headers; the ESP32 polls it over WiFi.

Why it matters to me

I'd only ever built for the web. This was my first time with real hardware — flashing firmware, wiring a board, the whole "why is nothing on the screen" loop — and my first time taking someone else's open-source project and making it genuinely mine on a different platform, all the way to a cloud deploy. The full macOS setup, step by step, lives in the repo README.
